V-TAC VT-8093 Infrared Motion sensor 360° black body for led bulbs IP65 - sku 6610

Name: V-TAC VT-8093 Infrared Motion sensor 360° black body for led bulbs IP65 - sku 6610
SKU: 6610
Price: 18.69 EUR
Availability: InStock

In stock

SKU: 6610

Are you a Reseller? Register Here

Description

Infrared Motion sensor 360° IP65 for LED lighting products. Possibility of varying the on time (TIME), the detection distance (SENS) and the intensity of the ambient light thanks to the Twilight Sensor (LUX). Suitable for all types of lampholder thanks to the connection via screw terminals.

Compatible with incandescent bulbs and with LED and fluorescent bulbs up to a maximum of < 1200W. The ignition time of the bulb applied can be adjusted: minimum time 10 ± 3 sec; maximum time 15 ± 2 min. The sensor, installed at a height variable between 1,8 and 2,5 meters, has an adjustable detection distance from 12 meters and a detection range of 180° / 360°. The head can be rotated vertically through 180°. The package also includes 2 screws with plugs for wall mounting.

Data sheet

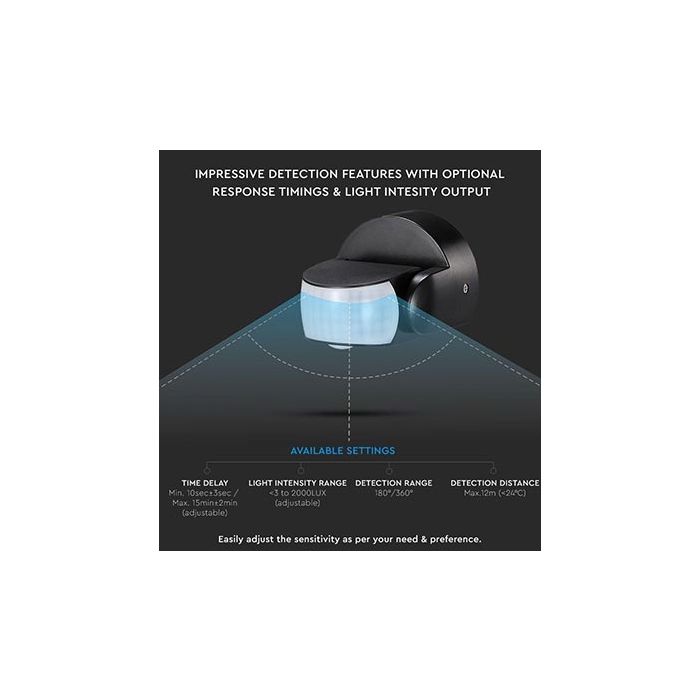

Sensor type: Infrared Motion sensor
Connection type: Connection with terminals
Detection range: 180° - 360 °
Detection distance: max. 12m.
Delay time / ignition duration: minimum time 10 ± 3 sec; maximum time 15 ± 2 min. (TIMMER TIME)
Adjustable light sensitivity 3-2000 Lux (TIMMER LUX)
Switching capacity LED Max. < 600 W
Incandescent switching capacity max. < 1200 W
Movement speed detection: 0.6 - 1.5 m / s

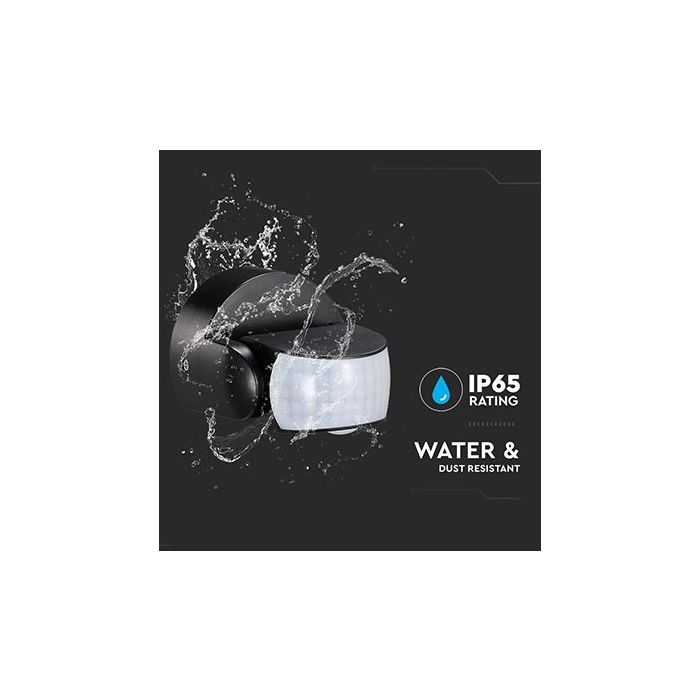

IP rating: Waterproof IP65
Working environment: -20 ℃ + 45 ℃
Material: PC
Color: Black
