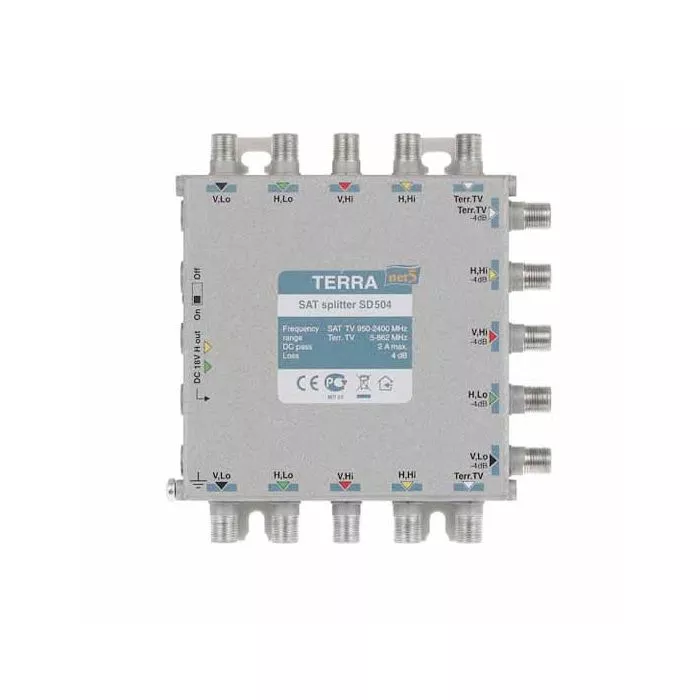

TV/SAT Splitter Class A TERRA 90SD-504

(1)

Out of stock

|

SKU: 90SD-504

Are you a Reseller? Register Here

TV/SAT The splitter is used in multiswitch installations to extend the signal bus consisting of four satellite lines (carrying signals from a Quatro LNB) and terrestrial line with DVB-T, DAB, FM signals. The splitter is equipped with DC-transition switch that in "ON" position runs current through "H" paths to both branches. In "OFF" position it takes place only within one branch.

The die-cast housing provides high screening efficiency by preventing the penetration of interfering signals to the unit.

Main features:

5 paths
used within multiswitch systems making use of sub-network partition
replaces 5 individual TV/SAT splitters
equipped with optionally switched-on DC transition
die-cast housing guarantying high screening efficiency (class A)
also available (as tap versions): SS-510 R70516, SS-515 R70517, SS-520 R70518

Frequency range: 950 ... 2400 MHz - SAT, 5 ... 862 MHz - TV
Connection loss: 4 dB - SAT, 4 dB - TV
Isolation between outputs:> 30 dB
DC-transition: max. 2 A
Operation temp: -20 °C ... 50 °C
Weight: 0.39 kg
Dimensions: 126 x 135 x 30 mm
