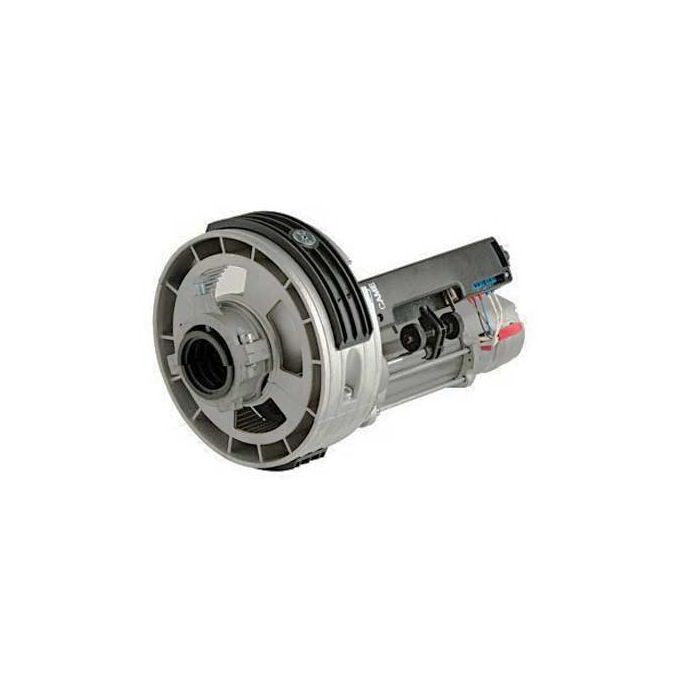

Reversible H4 operator lift capacity 120Kg Came

Name: Reversible H4 operator lift capacity 120Kg Came
SKU: 001H41230120
Price: 175.07 EUR
Availability: OutOfStock

Out of stock

SKU: 001H41230120

Are you a Reseller? Register Here

Description

New Reversible motor H4 Came damper with lifting force "120kg" Model 001H41230120

GATES The range is enriched with a new H-series engine, ideal for powering all types of rolling shutters for residential, commercial and public sectors.

H4 is the ideal solution for automating all types of rolling shutters with balancing spring 200 or 220 mm, and gate post 48 or 60 mm in diameter. Several models are available, both irreversible, and reversible, up to 180 kg (397 lb) of maximum power lifting, all with integrated limit switches adjustable by hand, without tools.

TOTAL VERSATILITY

All motors are suitable for H4 Series damper poles Ø 48 mm or Ø 60 mm. Also, the outer diameter of the motor is adaptable spring Ø 200 mm or 220 mm. Simply use the supplied accessories in series to achieve the necessary combination installation.

IN ACCORDANCE WITH THE REGULATIONS IN FORCE FOR SAFETY

The control panel, complete with radio decoder for remote control, allows you to create installations in accordance with current technical standards.

ELECTRONICS A 230 VOLT

Automatic code radio transmitter for easy activation of the radio control.
Connecting the accessories in order to achieve the low voltage installation in compliance with safety standards.
Commands to clean contact.
Command "non self" that requires continuous pressure on the button for the entire operation of the damper.
Electric lock for optional H001 reversible versions (H41230120 and H41230180)

Data sheet

Specifications

Model	H41230120
Degree of protection (IP)	40
Power supply (V - 50/60 Hz)	230 AC
Motor power supply (V - 50/60 Hz)	230 AC
Absorption (A)	1.8
Power (W)	400
Torque (Nm)	120
Lifting force (Kg)	120
Reduction ratio (i)	1/150
Intermittent / Work (%)	30
Tours crown (rpm)	10
Weight (kg / lb)	7
