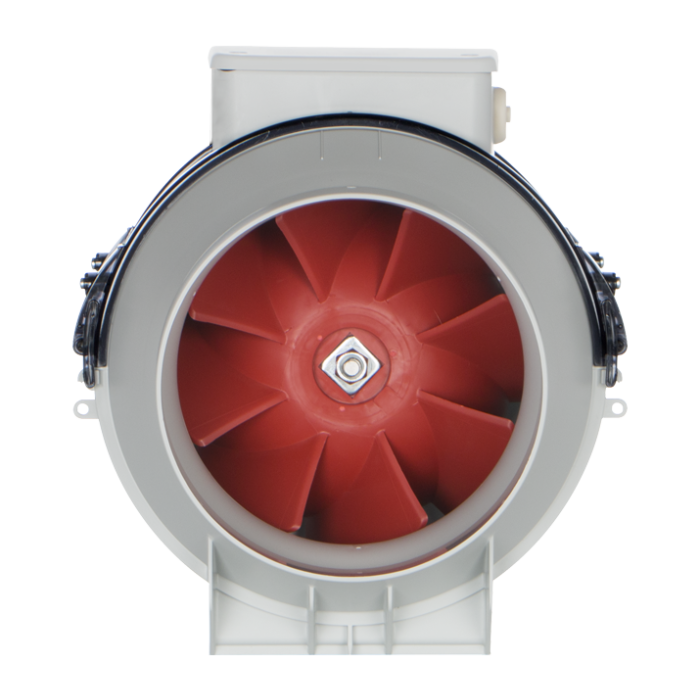

main product photo

In-line mixed flow extractor fan Vortice Lineo 100 - sku 17144

Out of stock

|

SKU: VOR0000017144

Are you a Reseller? Register Here

The LINEO series appliances are driven by 3-speed induction motors, useful for achieving the optimal compromise between performance, consumption and noise emissions. It is also possible to adjust the speeds by means of one of the VORTICE devices supplied as an option.

Product description

Construction in fire resistant plastic resin, class E2, according to ISO EN 11925-2: 2010, in the areas facing the motor and electrical components.
Nominal diameter 100 mm.
Induction motor, thermally protected, with shaft mounted on ball bearing supports, combined with a helical-centrifugal impeller.
High degree of water resistance: IPX5 (if installed in a duct).
Speed controllable by Vortice adjustment devices.

Absorbed power 1st speed (W): 20
Absorbed Power max (W): 23
Frequency (Hz): 50
Insulation Class: II°
IP Waterproof rating: 44
Max ambient temperature for continuous operation (°C): 60
Max. absorbed Current at max. speed (A): 0,11
Max. absorbed Current at min. speed (A): 0,09
Max. absorbed power at max speed (W): 23
Nominal Diameter (mm): 100
Voltage (V): 220-240
Weight (Kg): 2,00
Delivery 1st speed (l/s): 50
Delivery 1st speed (m³/h): 180
Max delivery at max speed (l/s): 70,8
Max delivery at max speed (m³/h): 255
Pressure - 1st speed (mmH20): 13
Pressure - 1st speed (Pa): 127,5
Pressure max - max speed (mmH20): 16,5
Pressure max - max speed (Pa): 161,9
RPM max: 2030
RPM min: 1520
Sound pressure level Lp [dB (A)] 3m - max speed: 39,4
Sound pressure level Lp [dB (A)] 3m - min speed: 30,7

More Information

Garanzia	Garanzia 2 anni
Dimmerabile	No
Smart home	No
