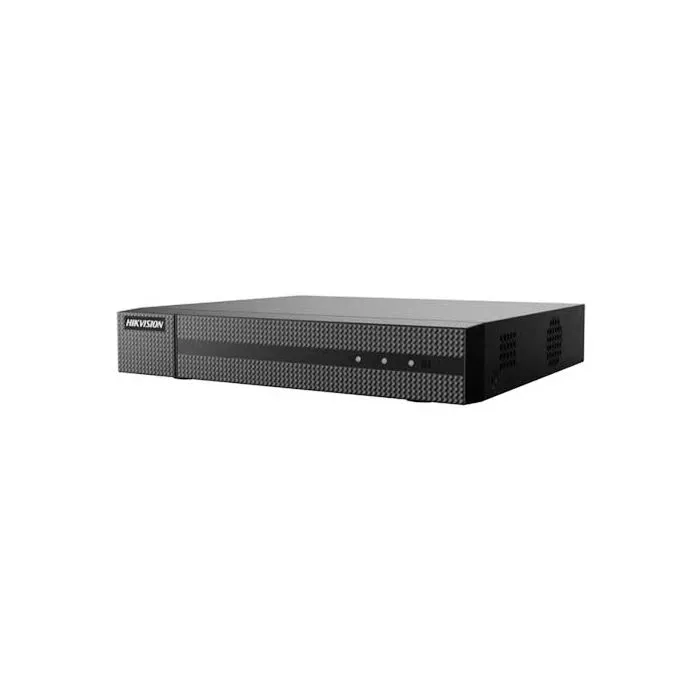

8CH Digital video recorder sku. HWD-6108MH-G2 Hikvision Hiwatch series Ultra HD 2K 4Mpx with hybrid technology 5IN1 multiple management standard CCTV: analog CVBS / HDCVI / HDTVI / AHD + IP @ 4Mpx. 2K Ultra hd resolution recording 8CH 4Mpx@8fps or 4M-N@15fps + 2 IP Cameras up to 4Mpx. Thanks to the hybrid technology of the video recorder it is possible to upgrade all the old video surveillance systems, giving the possibility to install the cameras at another resolution using the traditional micro coaxial wiring used for the installation of analogue CVBS cameras.Video recording is processed by a new video compression system identified as H.265 codec. This technology saves up to 50% on storage spaces and on data traffic consumption in remote viewing, compared to the previous H.264 compression.
The menu has been designed to allow everyone, even beginners, to browse and make changes to the settings of the recorder. The DVR offers connectivity from any device including applications for Windows, Mac, iPhone and Android.
Ideal video-security system for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominium contexts, etc.
Specifications
- Standard CCTV Technology Support: CVBS/HDCVI/HDTVI/AHD + IP@4Mpx Onvif
- HDTVI Camera resolution: 4Mpx@8fps, 4M-N@15fps, 1080P@25/30fps, 720P@25/30fps.
- AHD Camera resolution: 1080P@25/30fps, 1080N@25/30fps, 720P@25/30fps.
- HDCVI Camera resolution: 1080P@25/30fps, 1080N@25/30fps, 720P@25/30fps.
- CVBS Camera resolution: 960H, 700TVL@25/30fps.
- Video signal transmission over long distances (800-1100m), using coaxial or UTP cable.
- Recording (REC & Live) on all channels in 2k ultra hd 4Mpx@8fps / 4M-N@15fps.
- Video compression H.265+/H.265/H.264+/H.264 dual-stream
- Simultaneous video output HDMI / VGA.
- Supports 1 Input / 1 Output RCA Audio.
- It Supports 1 SATA HDD up to 6TB, 2 USB (2.0)
- Multiple network monitoring: Web viewer, CMS, Smartphone (iVMS-4200, Hik-Connect y iVMS-5200)
- Easy Setup P2P QR scan with Cloud service dedicated Hikvision.
- Multilingual menu.
Standard:
AHD, HD-CVI, HD-TVI, PAL
Video inputs:
8 pcs BNC - HD-TVI / AHD / HD-CVI / CVBS
Video outputs:
1 pcs HDMI 1 pcs VGA
Audio inputs:
1 pcs CINCH
Audio outputs:
1 pcs CINCH
Image compression method:
H.265+/H.265/H.264+/H.264
Number of compression levels:
6
Image records resolutions:
2560 x 1440 - 4Mpx 1280 x 1440 - 4M-N 1920 x 1536 - 3Mpx 960 x 1080 - 1080N 1280 x 960 – 960p (IP) 1280 x 720 - 720p 960 x 576 - 960H 704 x 576 - 4CIF 640 x 480 - VGA
Maximal total frame rate:
64 fps @ 2560 x 1440 px, 120 fps @ 1280 x 1440 px, 120 fps @ 1920 x 1536 px, 200 fps @ 1920 x 1080 px, 200 fps @ 960 x 1080 px, 200 fps @ 1280 x 720 px, 200 fps @ 960 x 576 px 200 fps @ 704 x 576 px200 fps @ 640 x 480 px
Recording speed adjustment:
1 ... 8 fps @ 2560 x 1440 px 1 ... 15 fps @ 1280 x 1440 px 1 ... 15 fps @ 1920 x 1536 px 1 ... 25 fps @ 1920 x 1080 px 1 ... 25 fps @ 960 x 1080 px 1 ... 25 fps @ 1280 x 720 px 1 ... 25 fps @ 960 x 576 1 ... 25 fps @ 704 x 576 for each channel
Operation modes:
8 x 4M-N max. 15 fps + 2 (4mpx) x IP
8 x 3Mpx max. 15 fps + 2 (4mpx) x IP
8 x 1080N max. 25 fps + 2 (4mpx) x IP
8 x 1080P max. 25 fps + 2 (4mpx) x IP
All modes allow for any combination of the AHD-H, HD-CVI, HD-TVI, CVBS cameras
Recording modes:
Manual, Motion Detection, Schedule
Supported hard drives:
1 x 6 TB SATA
External storage devices backup:
Backup to USB drive (pendrive)
Searching and playback the records:
Records searching: timeline or file list. Playback: forward, fast, slow. Playback max. 8 cameras in the same time
Network interface:
1 x RJ-45 - 10/100 Base-T
Network functions:
Network Client Software and IE browser: live view, playback and backup the records, partial configuration of the recorder parameters
Bitrate:
32 ... 4096 kbps
Network protocols:
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Mobile phones support:
Port no.: 8000 or access by a cloud (P2P) Android: Free application iVMS-4500 or Hik-Connect iOS (iPhone): Free application iVMS-4500 or Hik-Connect
PC client access ports:
Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application
Multi-operation:
Pentaplex
Alarm inputs / outputs:
No
PTZ control:
Control compatible with coax HD-TVI Hikvision
Motion Detection:
Split the screen into zones : 22 x 18 motion zones
Mouse support:
Yes
IR remote controller in the set:
No
Power supply:
12 V DC / 1.5 A (power adapter included)
Color:
Black
Weight:
0.800 kg
Dimensions:
260 x 222 x 45 mm
Supported languages:
English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Polish, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian
Manufacturer / Brand:
HIKVISION
