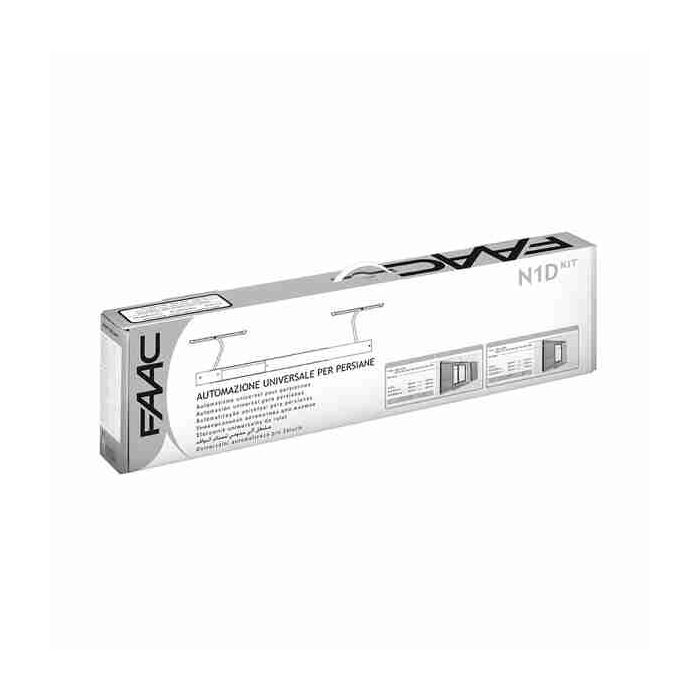

FAAC N1D AUTO universal automation kit for shutters, 1 or 2 doors, white (9010)

Name: FAAC N1D AUTO universal automation kit for shutters, 1 or 2 doors, white (9010)
SKU: 105745
Price: 478.73 EUR
Availability: InStock

In stock

SKU: 105745

Are you a Reseller? Register Here

Description

UNIVERSAL KIT N1D AUTO FAAC for shutters with 1 or 2 white doors (RAL9010)

The kit contains all the components necessary to power all the possible configurations of swing shutter:

with one or two doors
installations on architrave or windowsill
first door to move left or right
with cable exit on the right or on the left
Safety unlocking system to manually open the blinds in the event of a blackout or breakdown
Automatic stop at the end of the stroke
Automatic detection of obstacles, in closing

Limits of use:

TEMPLATE	N1D car KIT
Number of Doors	1 DOOR	2 ANTE
Minimum compartment width	660 mm	860mm
Maximum compartment width	1,300 mm	1,600 mm

Minimum depth of the compartment:

With ND4 arm (included in the kit)	100 mm	100 mm
with other arms (accessories)	150 mm	150 mm
Door delayed closing	Right or left	Right or left
Maximum Persian thickness	36 mm	36 mm

In the case of double-leaf applications, the opening angles of the leaves must be identical.

Data sheet

Technical features:

Template	N1D AUTO KIT
Couple max	15Nm
Max speed	17 rpm
Continuous use time (ROT)	240 s
Power supply voltage	220-240V ~ 50 / 60Hz
Max power	180 W
Max. Stroke	16 rounds
Opening and closing time	~ 16 s
Drive	diverter
Max persian surface for windy area	2.7 m²
Max surface area for sheltered area	4 m²
Carter color	White RAL 9010
