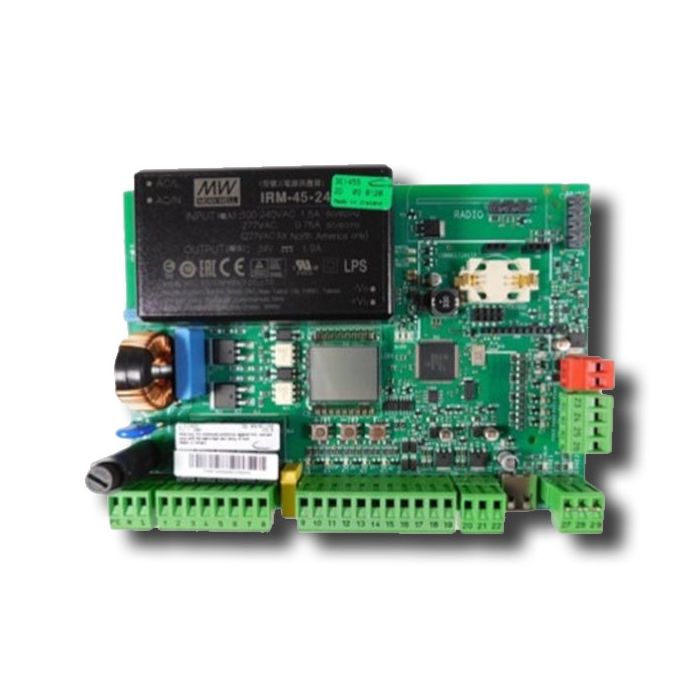

FAAC E145S electronic board 790076 replacement control unit for gate automation motors

Name: FAAC E145S electronic board 790076 replacement control unit for gate automation motors
SKU: 790076
Price: 301.58 EUR
Availability: OutOfStock

Out of stock

SKU: 790076

Are you a Reseller? Register Here

Description

The E145S can control one or more swing operators, or a sliding gearmotor, or mixed swing-sliding systems.

It is compatible with all receivers (3-pin or 5-pin or external) and all photocells (both BUS and traditional).

Operating logic: Semi-automatic, Semi-automatic step-by-step, Automatic Safety, Automatic with inversion in pause, Automatic step-by-step, Automatic Step-pass safety, Automatic, Automatic 1, Automatic with timer function, Semi-automatic B, Mixed (AP pulse / CH with dead man), Dead Man C, Custom (PC / MAC)

Data sheet

Template E145S

Mains supply voltage	Switching power supply from 90V ~ to 260V ~ 50 (60) Hz
Max power	4W Stand by, <2W with sleep function (programmable from PC / MAC) W
Max motor power	800 W
Max accessory load	500 mA 24V - 500 mA BUS 2easy
Max load of electric lock	FAAC lock (12V ~ - 24V - 500 mA
Programming	LCD display and buttons, via Simply Connect connectivity devices
Status reporting	LCD and led display
Terminal block inputs	Open, Open pedestrian door, Stop (closed), BUS 2easy, Opening safety devices, Closing safety devices, Power supply + Ground, Opening and closing limit switches, Safety edge in opening, Safety edge in closing
Terminal block outputs	Flashing light, Motors, 24V accessories power supply , 2 programmable OUTPUTs (default: pilot light and fail-safe), 2 electric locks
Quick connector	XF 433/868 module for OmniDEC decoding, connector for DECODER / MINIDEC / RP, USB-A, Simply Connect
Protection fuses	1 (10A)
Operating ambient temperature	-20 ° C ÷ + 55 ° C
