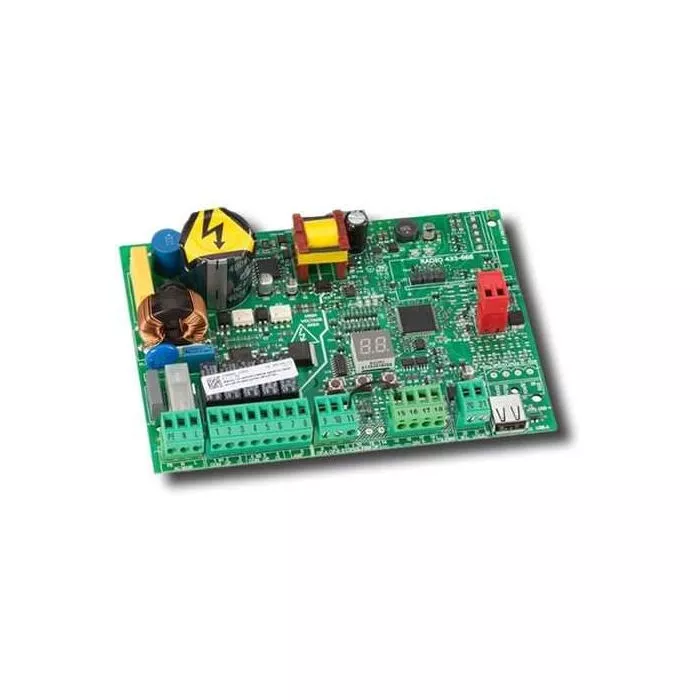

FAAC E045S 230V automation electronic board for 790077 actuators

Name: FAAC E045S 230V automation electronic board for 790077 actuators
SKU: 790077
Price: 173.48 EUR
Availability: InStock

In stock

SKU: 790077

Are you a Reseller? Register Here

Description

New model E045S (replaces the old model E045 790005 )

E045S electronic card for FAAC automation actuators Mod. 790077 The electronic card can be used for all electromechanical and hydraulic actuators. DISPLAY programming, guarantees the simplicity of the card. A self-learning function of the opening and closing times, which can be activated by pressing a programming key, makes the automation initialization operation immediate. It is compatible only with the XF 433 / XF 868 receiver (connector predisposition) and with the XP 20B D photocells (BUS connection). For the connection of traditional photocells BUS XIB interface is provided. For 390 actuator

Data sheet

Technical features

Model: E045s
Mains supply voltage: Switching power supply 230V ~ (± 15%) 50 (60) Hz
Max power: 4W Stand by W.
Max motor power: 800W
Max accessory load: 500 mA 24V - 500 mA BUS 2easy
Max electric lock load: FAAC lock (12V ~ - 24V)
Programming mode: LED display and buttons
Status signaling: Display and led
Terminal block inputs: Open, Open pedestrian door, Stop (closed), BUS 2easy, Power supply + Earth
Terminal board outputs: Flashing light, Motors, 24V / accessories power supply, 24V indicator light, 12V ~ electric lock power supply
Quick Connector: XF 433/868 module for OmniDEC, USB decoding
Protection fuses: 1 (2.5A)
Operating ambient temperature: -20 ° C ÷ + 55 ° C
