CYCLO KIT automation for sliding 400KG 24V SAFE&GREEN FAAC

CYCLO KIT automation for sliding 400KG 24V SAFE&GREEN FAAC

Name: CYCLO KIT automation for sliding 400KG 24V SAFE&GREEN FAAC
SKU: 1059995
Price: 396.5 EUR
Availability: InStock

In stock

SKU: 1059995

PROMO Promo until 31/12/2023

€396.50

14%

€461.16

Shipping expected from Wednesday 23 April to Thursday 24 April

Are you a Reseller? Register Here

Description

CYCLO FAAC Kit 24V - Electro-mechanical operator C720 for residential sliding gates with single-leaf max weight 400Kg with:

New mobile-axis reduction principle FAAC PATENT
Exceptionally high mechanical performance >80%.
Control unit with anti-crushing device and electronic encoder with reverse function upon detection of obstacle.
Magnetic limit switches.
Master-Slave function for controlling 2 opposing leafs with an E721 board.
Residential use

SAFE & GREEN is the FAAC answer for a new approach to the world of automatic systems. FAAC, a pioneer in the world of automatic systems, launches new systems and solutions able to effectively respond to the topics for which it is very fond of:

The safety of the automated installations is fully compliant to EU norms and current standards
Reduction of energy consumption enables a lower environmental impact and, as a consequence, a quantifiable cost saving for the end user.

Description of symbols

OMNIdec: Electronic control board with integrated radio control decoding

2Easy: Control board for accessories with two-wire cabling, FAAC proprietary protocol

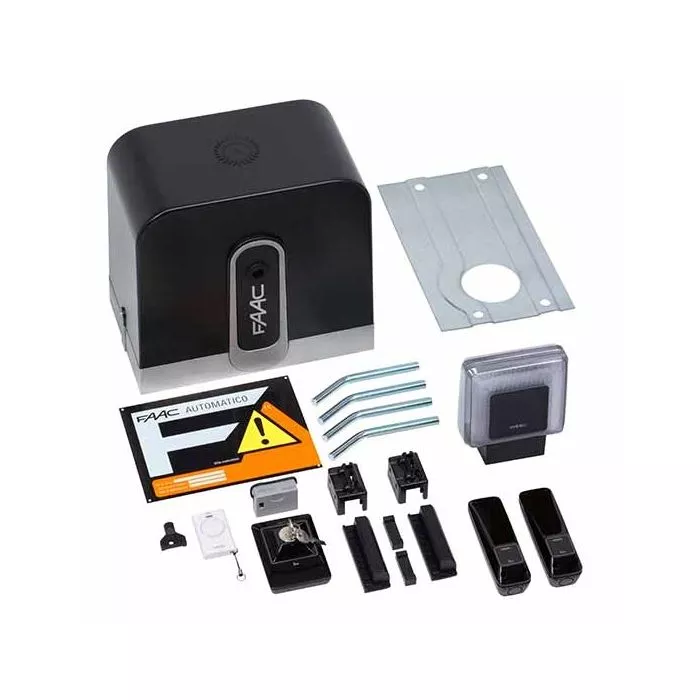

THE KIT CONTAINS

Q.ty	Description	Item code
1	Gearmotor C720 - 24 Vdc with electronic control unit incorporated and foundation plate	109320 (109 320)
1	Frequency module XF 433 MHz	319006 (319 006)
1	Two-channel transmitter XT2 433 SLH LR	787007 (787 007)
1	Flashing lamp FAACLED 24V	410024 (410 024)
1	Pair of photocells XP 20B D	785103 (785 103)
1	Key-operated push-button T10 E	401019001 (40101 9001)

Data sheet

TECHNICAL SPECIFICATIONS

Model: C720 24V - (Mod. 109320)
Power supply voltage: 220-240V~ 50/60 Hz
Motor power supply: 24 Vdc
Power: 220W
Absorbed current: 7A
Electric motor: 3200 r.p.m.
Max. torque: 18Nm
Thrust on gate: 320N
Pinion: Z28 module 4
Gate Speed: 18 m/min
Orating ambient temperature: 20 °C to +55 °C
Weight: 8Kg
Limit-switch: Magnetic
Protection class: IP44
Dimensions (L x D x H) in mm: 300 x 180 x 280

More Information

Garanzia	Garanzia 2 anni
Tipo Pignone	modulo a 4
Alimentazione	24v
Serie Motori Scorrevoli	Cyclo
Dimmerabile	No
Tipologia Cancello	Scorrevole
Starlight Technology	No
Smart home	No
Peso anta scorrevole	da 300 a 500 kg
