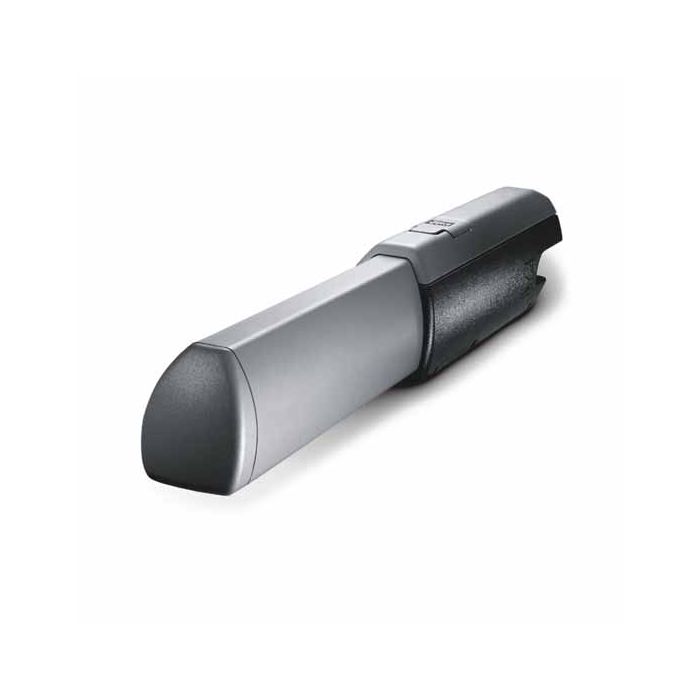

A3006 CAME ATI Irreversible swing gate motor 3 m for 230V leaf

Name: A3006 CAME ATI Irreversible swing gate motor 3 m for 230V leaf
SKU: 001A3006
Price: 431.27 EUR
Availability: InStock

In stock

SKU: 001A3006

Are you a Reseller? Register Here

Description

The reliability and the CAME experience to be touched by hand

CAME A3006 ATI SERIES

(Opening time 90 ° 28s)

These are the qualities that allow an automation to be reliable over time even on large gates. Based on these requirements, CAME offers a complete range of electromechanical gearmotors that do not require regular adjustments or maintenance over time.
Practical and safe

The release of the gearmotor, protected by the door and key, allows convenient access to manual opening in the event of a power failure.

Extremely robust

The external structure, made entirely of aluminum, guarantees strength and protection for atmospheric agents.

The 230V electronics

In addition to the usual command and safety functions, the new 230V ATI electronics offer some peculiarities that allow for total automation control and optimization of the service; here are some:

Complete control of the window frame from the remote control
including the possibility of immediate stopping the movement.
Programming of the command for the partial opening of the leaf
ideal for all entrances without a pedestrian gate.
Test of the active safety devices on the system
before every maneuver of the gate both in opening and in closing.

Data sheet

Overall dimensions * Dimensions referring to gearmotors of the A5000 series

Limits of use

Series	Max wing width	Max weight of the door
A3000	2 m	800 kg
2.5 m	600 kg
3 m	400 kg

Technical information

Guy	A3006
Degree of protection	IP44
Supply	230V 50/60 Hz
Motor power supply	230V 50/60 Hz
Absorption	1.2A
Nominal power	150W
Work intermittency	50%
Adjustable thrust	400-3000N
Motor thermal protection	150 ° C
Opening time (90 °)	28s
Operating temp	-20 ° C min +55 ° C max
