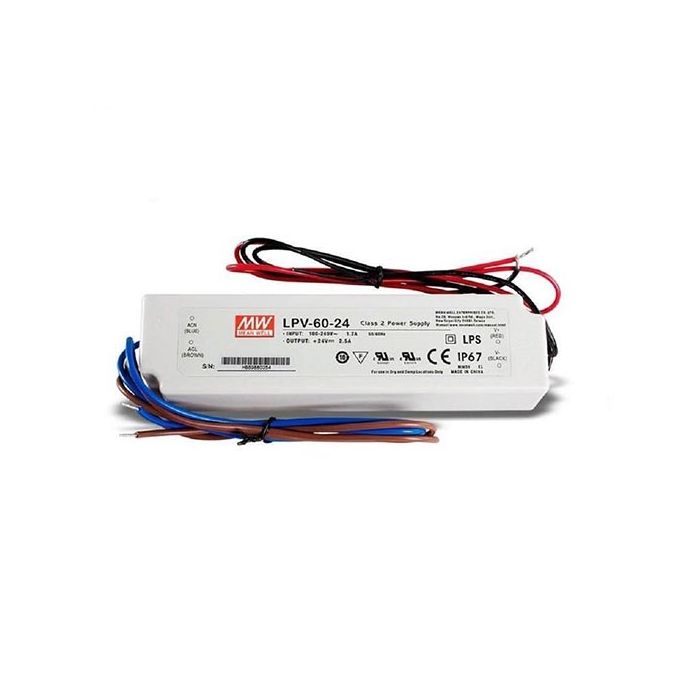

60W 24Vdc 2.5A Single Output Switching Power Supply IP67 isolated plastic case Mean Well LPV-60-24

60W 24Vdc 2.5A Single Output Switching Power Supply IP67 isolated plastic case Mean Well LPV-60-24

Name: 60W 24Vdc 2.5A Single Output Switching Power Supply IP67 isolated plastic case Mean Well LPV-60-24
SKU: LPV-60-24
Price: 19.64 EUR
Availability: InStock

In stock

SKU: LPV-60-24

€19.64

Are you a Reseller? Register Here

Description

60W 24Vdc Switching power supply Mean Well LPV-60-24 is a power supply in a resin case (Waterproof IP67), particularly suitable for lighting applications such as the power supply of LEDs and LED lighting fixtures. The absence of forced ventilation makes it suitable for use in all applications where a certain degree of silence and reliability is also required. It is equipped with short circuit, overload and overvoltage protection.

Features

Constant voltage design.
Universal AC input / Full range.
Withstand 300VAC surge input for 5 seconds.
Protections: Short circuit / Overload / Over Voltage.
100% full load burn-in test.
Cooling by free air convection.
Fully isolated plastic case
Fully encapsulated with IP67 level.
Class II power unit, no FG.
Class 2 power unit.
Pass LPS.

Data sheet

Primary Output Voltage (VDC)	24
Output Current (A)	2.5
Maximum Output Power (W)	60
Family	LPV-60
Input Voltage (VAC)	90 to 264
Input Frequency	47 to 63
Number of Outputs	1 Output
Product Type	AC to DC Power Supply
Efficiency (%)	86
Operating Temperature-Min (Cel)	-30
Operating Temperature-Max (Cel)	65
Dimension	162.542.532mm (LWH)
IP Rating	IP67
Agency Approvals	TUV/CB/CE
