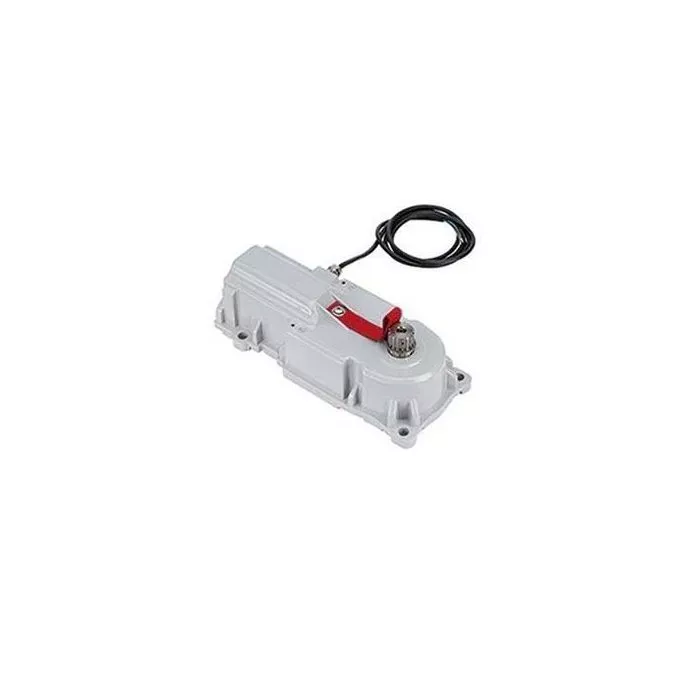

230V 770N Underground electro-mechanical operator for residential swing-leaf gates 3,5M FAAC 10675201

Name: 230V 770N Underground electro-mechanical operator for residential swing-leaf gates 3,5M FAAC 10675201
SKU: 10675201
Price: 450.18 EUR
Availability: OutOfStock

Out of stock

SKU: 10675201

Are you a Reseller? Register Here

Description

230V 770N Underground electro-mechanical operator for residential swing-leaf gates with single-leaf length of 3.50 m and max weight of 500 kg.

Discreet underground operator.
Access to the operator is possible without removing the leaf.
Protection class IP 67.
Electronic control unit with anti-crushing device and virtual encoder with reverse function upon detection of obstacle.
Emergency battery to ensure operation in case of a power cut (optional).
Easy to use lever style manual release, protected by lock.
SAFEzone system: 770 24V+ E024S or E124
GREENTECH system: 770 24V + E124

The 770 operator package includes: an electro-mechanical operator, transmission link arm, a thrust capacitor 12.5 μF 400 V.

Data sheet

Reduction ratio 1:1418
Power supply voltage 230 V ac (+6%-10%) 50 Hz
Electric motor 1400 r.p.m.
Absorbed power 380 W
Absorbed current 1.7 A
Thermal protection on motor winding 140 °C
Max traction thrust force 330 Nm
Angular speed 6°/sec
Type and frequency of use at 20 °C S3 - 30%
Leaf max. opening angle 110° (140° and 180° with optional kit)
Operator dimensions 3.5 m (110°), 3 m (180° with optional opening kit), 2.5 m (140° with optional opening kit)
Weight 12.5kg (27.8kg with foundation box)
Protection class IP 67
Operator dimensions 360x150x140 mm
Operating ambient temperature -20 °C to +55 °C
Foundation box dimensions 430 x 307.5 x 214 mm
