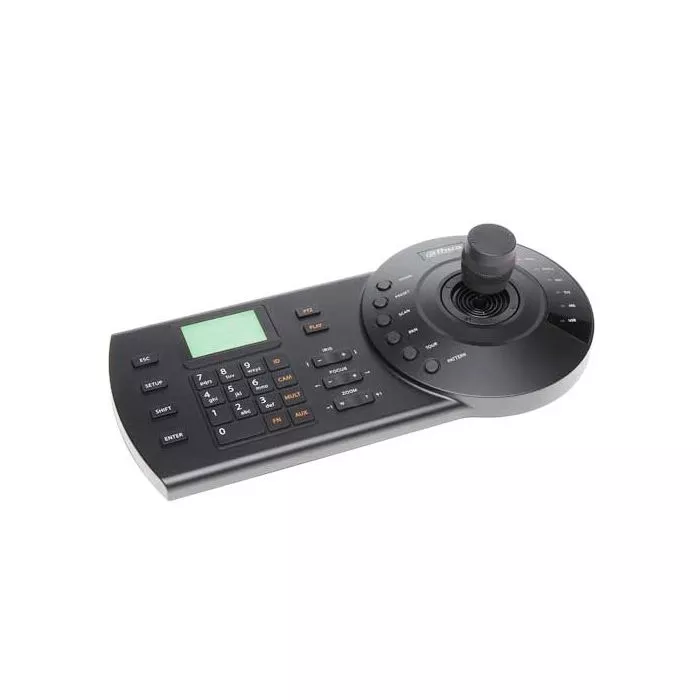

Tastiera di controllo rete IP RS485 Dahua per il controllo e la programmazione di telecamere Dahua PTZ serie DH-SD, DVR Standalone e DNH-SD (IP). Display LCD, RS485, RS422, USB, Joystick 3D, Connessione a SmartPSS via USB. È inoltre possibile controllare più registratori con una tastiera.
Protocols:
AD1641M, ADMATRIX, BANKNOTE, CATU, DH-CC440, DH-MATRIX, DH-SD1, DH-SD2, EPTZ, GENERAL, HAIYU, HY, LILIN, MERCER, MERCER-1, PANASONIC, PE5051K, PELCO-9750, PELCOASCII, PELCOD, PELCOD-DON, PELCOD-S, PELCOD-S1, PELCOD1, PELCOP, PELCOP-A, PELCOP-HK, PELCOP1, PELCOP1-A, PELCOP5, PHILIPS, PIH-717, PELCOP-SD, QT-2XXD, RM110A, SAE, SAMSUNG, SANLI, SANTACHI, SHARP, SIERA-D, SIERA-P, SONY, WV-CS850I, WV-CS850II, WV-CS950, YAAN
Cameras numbers (ID):
1 ... 255
Maximal control distance:
1200 m @ RS-485 / RS-232
Communication standard:
Network mode - Ethernet, RJ-45 socket
Direct mode - RS-485, terminals
Direct mode - RS-232, D-sub socket
Manipulator:
3-axis joystick, Speed proportional to the swing (possibility of zoom control by joystick)
Display:
LCD - with light indication
PTZ control:
Dahua or other manufacturers Speed Dome cameras
Recorders DAHUA
Power supply:
12 V DC / 1 A
Operation temp. / Relative humidity:
-10 °C ... 55 °C / max. 90 % non-condensing
Weight:
0.674 kg
Dimensions:
330 x 160 x 105 mm
Manufacturer / Brand:
DAHUA
