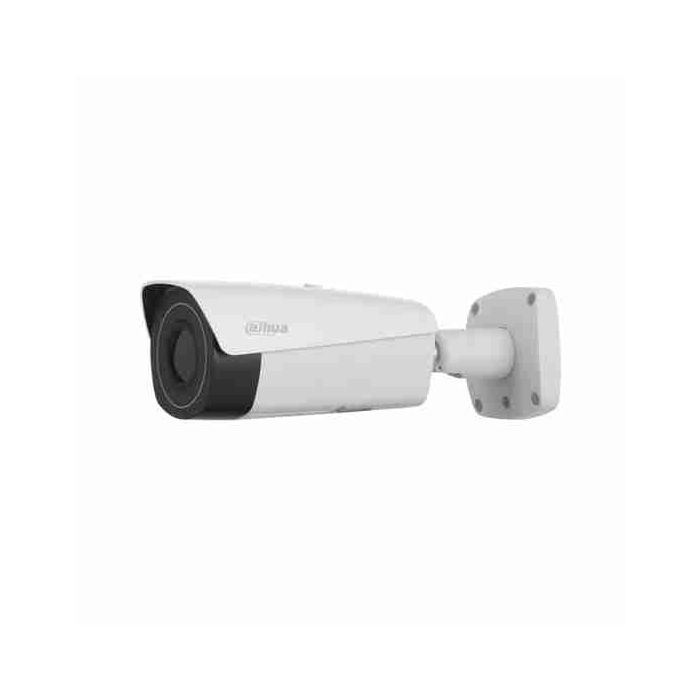

Le TPC-BF5400-TC13 est une solution moderne qui détecte la présence de personnes, d'animaux et de véhicules quelles que soient les conditions d'observation. L'appareil est équipé d'un microbolomètre sensible VOx qui vous permet d'observer des objets en cas de brouillard, de fumée et en l'absence d'éclairage. Un autre avantage de la série de caméras TPC est la capacité de détecter l'incendie et d'envoyer un signal au panneau d'alarme lorsque l'incendie se produit.
L'alimentation PoE, compatible avec la norme 802.3af, rend l'appareil encore plus polyvalent et plus facile à installer.
Standard : TCP / IP , CVBS Sensor : Uncooled VOx microbolometer Screen size : 400 * 300 Pixel size : 17 μm Thermal sensitivity (NETD) : <40 mK @ F1.0 Spectral field : 7 μm ... 14 μm Focal distance 13mm Effective distance - Effective distance between people (1.8 mx 0.5 m): detection (450 m), survey (110 m), identification (60 m) - Effective distance in vehicles (2.3 mx 2.3 m): survey (1300 m), survey (350 m), identification (180 m) Resolution : -Stream 1: 1280x1024, 720P (25 ips) - Stream 2: 640x512, 320x256 (25 ips) Temperature measurement accuracy ± 2 °, ± 2% ZOOM Digital, 19x Viewing angle : 29.7 ° x 22.3 ° Video output : CVBS , PAL - 1 Vpp / 75 Ω, BNC RS-485 interface : Memory card slot : Support for Micro SD cards up to 128GB (possibility of local recording) Image compression method : H.264 / MJPEG Alarm inputs / outputs : 2/1 Audio : External microphone input Temperature measurement : Point Line Area max. 8 positions Temperature measurement range : -40 ° C ... +160 ° C -40 ° C ... +550 ° C Bitrate : 640 ... 8192 kbps - H.264 Transmission speed of the main flow : 25 fps @ 1280 x 1024 Network interface : 10/100 Base-T (RJ-45) Network protocols : IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP , UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1 x Radius WEB Server : incorporated Maximum number of online users : 20 ONVIF : 2:42 Mobile access : Port 37777 Android: Free gDMSS Lite application iOS (iPhone): Free application iDMSS Lite There are also paid versions of mobile applications: gDMSS Plus, iDMSS Plus Default IP address : 192.168.1.108 Default user name / default administrator password : admin / admin Access ports via browser : 80, 37777 Access ports via PC application : 37777 Access ports via mobile application : 37777 ONVIF port : 80 Selected features : DDE (Digital Detail Enhancement) - for high dynamic images, automatically adjusts image contrast for temperature parameters. The DDE function is the ideal tool to perform quick and precise checks of electrical systems. Thanks to it, the image is much more detailed and clear FFC (Flat Field Correction) - background correction function - normally increases the intensity of the image up to x2. Compensates for non-uniform lighting on the sensor 3D-DNR - Digital noise reduction in the image ROI - improving the quality of selected parts of the image AGC - Automatic adjustment of image gain Motion detection Configurable privacy zones Sharpness - sharper edges of the image D-ZOOM - Digital Zoom IVS analysis : crossing the line (trap) , intrusion , abandoned / missing object , object detection (people, vehicles), fire detection Power supply : PoE (802.3af) , 12 V DC / 580 mA, 24 V AC / 290 mA Energy consumption : ≤ 7 W Custody : Compact - Metal Color : White Operating temperature : -30 ° C ... 60 ° C Degree of protection : IP67 - Lightning-proof 6KV Weight : 1.36 kg Dimensions : 291 x 103 x 97 mm Supported languages : English Manufacturer / Brand : DAHUA Warranty : 3 years
