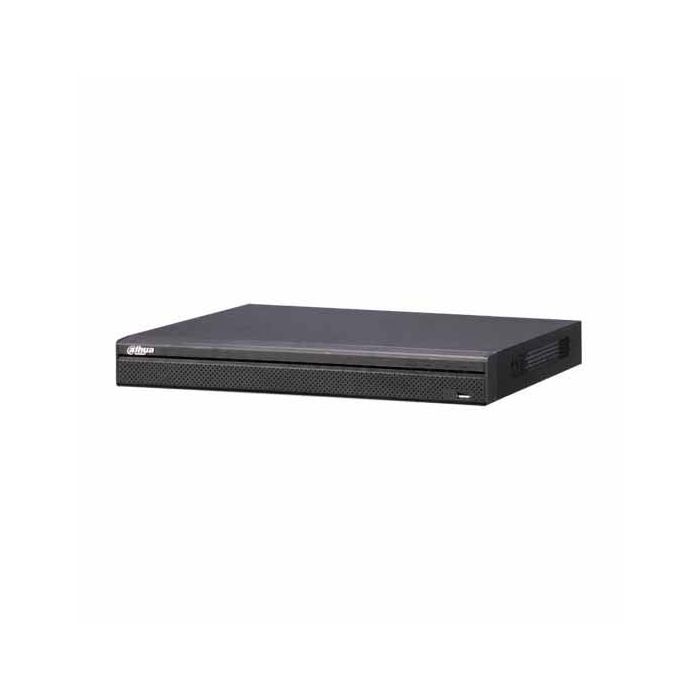

Dahua NVR5216-4KS2 is capable of transmitting 12MP image. It helps to save up to 50% HDD and storage space with its H.265 decoding technology compared with H.264. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as home safety, grocery, warehouse, education, and financial institutions.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras
4K Resolution
4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.
High Efficiency Video Coding (H.265)
The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.
Features
- NVR ULTRA HD 4K 1U - 16CH channels with high performance quad-core processor
- Supported resolution up to @12Mp megapixel.
- Video compression H.264 / H.265 / MJPEG / MJPEG4 decodes video codec.
- Max 320Mbps bandwidth input.
- Simultaneous video output HDMI / VGA
- Visibility remotely up to 128 concurrent users.
- 4 inputs + 2 relay alarm outputs .
- Supports 2 SATA HDDs up to 6TB, 2 USB (1 rear USB3.0, 1 USB2.0 front).
- Vision Mobile on iPhone, iPad and Android
- Easy P2P QR Scan setup with dedicated Cloud Dahua service. Note: If the Dahua DMSS application does not communicate with the server during the P2P configuration "Qr Scan" with smartphones, you must use and install another application: EVOPLUS Lite (available for free on iOS and Android marketplaces).
- Support multi-brand network cameras: Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
- Support and Programming of SMART & Video Analysis IVS : Tripwire, Intrusion, Abandoned / Missing, Face Detection. (Crossing lines | Intrusion in the air | Abandoned object | Detecting faces)
- 3D Smart Positioning with Dahua PTZ Camera
- Multiple Remote Access: Web Viewer, CMS (DSS / PSS) & DMSS
- NVR menu only in English
IVS Dahua Technology - More information click here!
Standard:
TCP/IP
Supported resolutions:
16 @ 4000 x 3000 px, 16 @ 3840 x 2160 px, 16 @ 3072 x 2048 px, 16 @ 2592 x 1944 px, 16 @ 2560 x 1440 px, 16 @ 2048 x 1536 px, 16 @ 1920 x 1080 px, 16 @ 1280 x 720 px, 16 @ 704 x 576 px
Video outputs:
1 pcs HDMI 1 pcs VGA
Audio support:
16 Channels - Audio from cameras
Audio inputs:
1 pcs Microphone, CINCH
Audio outputs:
1 pcs CINCH
Image compression method:
H.265 / H.264 / MPEG-4 / MJPEG
Maximal total frame rate:
400 fps @ 4000 x 3000 px, 400 fps @ 3840 x 2160 px, 400 fps @ 3072 x 2048 px, 400 fps @ 2592 x 1944 px, 400 fps @ 2560 x 1440 px, 400 fps @ 2048 x 1536 px, 400 fps @ 1920 x 1080 px, 400 fps @ 1280 x 720 px, 400 fps @ 704 x 576 px
Supported hard drives:
2 x 6 TB SATA III
Recording modes:
Manual, Sensor, Motion detection, Schedule
Network protocols:
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, ONVIF 2.4
External storage devices backup:
Backup to USB drive (pendrive)
Searching and playback the records:
Records searching: by time and events type. Records playback: forward, backward, fast, slow Advanced searching (to the one second accuracy) All channels synchronous playback, Smart Search function
Bitrate:
max. 320 Mb/s
Network functions:
Full support via network, Remote records copying, Web Server built-in max. 128 on-line users
ONVIF:
2.4
Mobile phones support:
Port no.: 37777 or access by a cloud (P2P)
Android: Free application gDMSS Lite
iOS (iPhone): Free application iDMSS Lite There are also paid versions of mobile applications: gDMSS Plus, iDMSS Plus
Default admin user / password:
admin / admin
Default IP address:
192.168.1.108
Web browser access ports:
80, 37777
PC client access ports:
37777
Mobile client access ports:
37777
Port ONVIF:
80
Multi-operation:
Pentaplex
Alarm inputs / outputs:
4 pcs / 2 pcs - Relay output
PTZ control:
Yes
Motion Detection:
22 x 18 motion zones
Intelligent Image Analysis:
Yes
Mouse support:
Yes
IR remote controller in the set:
No
Power supply:
12 V DC / 4 A (power adapter included)
Weight:
1.61 kg
Dimensions:
375 x 282 x 56 mm
Supported languages:
English, Bulgarian, Czech, Finnish, Greek, Polish, Romanian, Serbian, Slovenian, Hungarian
Country of origin:
China
Manufacturer / Brand:
DAHUA
