Sliding gate motor gearmotor 3500kg 23mt 400V BY-3500T CAME

Sliding gate motor gearmotor 3500kg 23mt 400V BY-3500T CAME

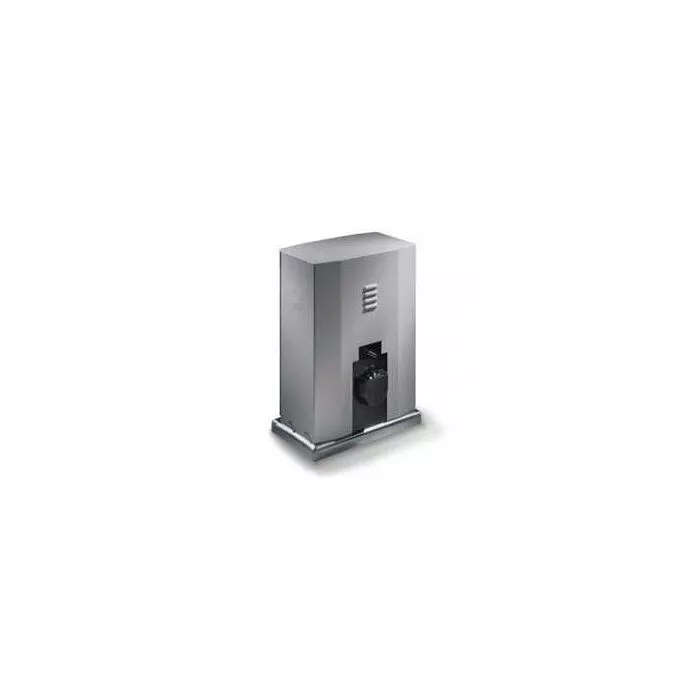

Name: Sliding gate motor gearmotor 3500kg 23mt 400V BY-3500T CAME
SKU: 001BY-3500T
Price: 1966 EUR
Availability: InStock

In stock

SKU: 001BY-3500T

qty: 3

Description

Came Three-Phase Industrial Engine By-3500T. Among the various is the product that enhances the characteristics of power and reliability; By-3500T is ideal for automating sliding doors up to 3500 Kg and 23 m in length.

What are the advantages of the three-phase?

Greater thrust in maneuvering: the 230-400V three-phase electronics allow for greater dynamic thrust in the initial phase of the maneuver, thus overcoming critical situations related to the weight of the window
Frequent passages: The three-phase three-phase gearmotor guarantees operation even in the toughest conditions of use such as industrial applications
Inertia control: In large industrial doors, the weight of the gate is often a problem to be solved for the safety and proper operation of the system. Passive inertia at the end of the maneuver can in fact cause malfunctions as well as risks to the user

Main features

Command programming for the partial opening of the ideal door for all entrances without pedestrian gate
Safety even when the gate is stationary each command is canceled in case of obstacle detected by the safety devices
Stopping the gate directly from the radio transmitter for a motion control always at your fingertips

Download the installation manual

BY-3500T.PDF

Data sheet

Technical information Guy BY3500T Degree of protection IP54 Power 230V / 400V three phase 50/60 Hz Power supply 230V / 400V three phase 50/60 Hz Absorption 2A Power max 750W Speed of maneuver 10.5 m / min Intermediate work 50% thrust 3500 N Thermoplastic motor 150 ° C Operating temperature -20 ° C min / 55 ° C max
