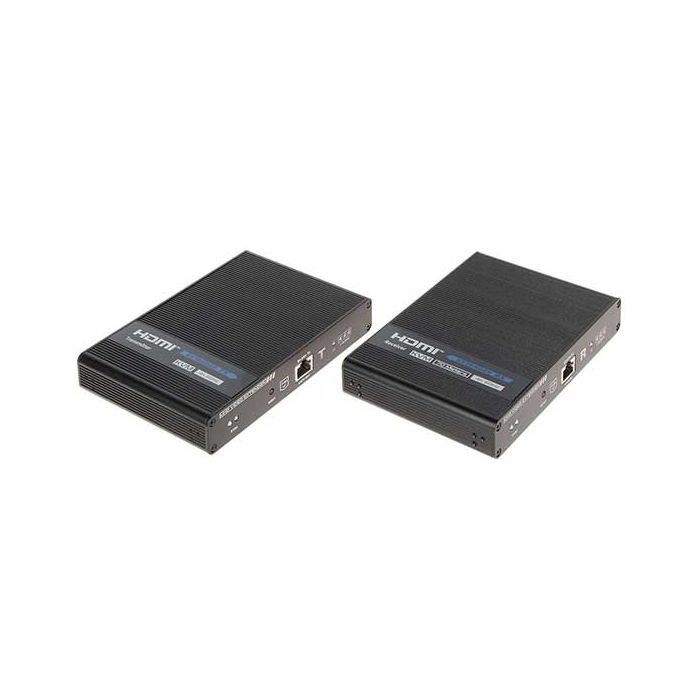

RX+TX Extender HDMI+USB UHD 4K UTP cat5e/cat6 over ip - 70M

Name: RX+TX Extender HDMI+USB UHD 4K UTP cat5e/cat6 over ip - 70M
SKU: 90HDMI+USB-EX-100-4K
Price: 165.5 EUR
Availability: InStock

In stock

SKU: 90HDMI+USB-EX-100-4K

qty: 1

Description

Device allows to send High Definition signal to the TV-Set receiver equipped with HDMI connector via UTP Cat. 5e, 6 cable. Extender also allows to extend an USB 2.0 port, eg. in order to control the recorder using the mouse. Power Supply Included in the package.

To TV set you need connect only one UTP cable, what makes installation easy and improve aesthetic quality of installation. The signal bit-rate at the transmitter output is approximately 20 Mb/s, which results in a slight visible compression effect. The recommended minimum distance of watching from the screen is 2m ... 3m.

Data sheet

Supported HDMI resolutions: 480p, 576i, 576p, 720p 1080i, 1080p, 4K x 2K, 4K UHD Maximal transmission range: 70 m UTP cat. 6 @ 4K UHD, 70 m UTP cat. 5, 5e @ 1080p Main features: Extender also allows to extend an USB 2.0 port, eg. in order to control the recorder using the mouse Audio transmission via network Main features: Very good image quality with no visible distortions caused by compression No delays in video transmission No delays in mouse control operations Transition of the HDMI signal in the transmitter Power supply: Transmitter 5 V DC / 2 A (power adapter included) Receiver 5 V / 2 A (power adapter included) Operation temp: -20 °C ... 60 °C Permissible relative humidity: 0 % ... 90 % (non-condensing) Weight: 0.29 kg Dimensions: 150 x 107 x 28 mm - Transmitter or receiver dimensions
