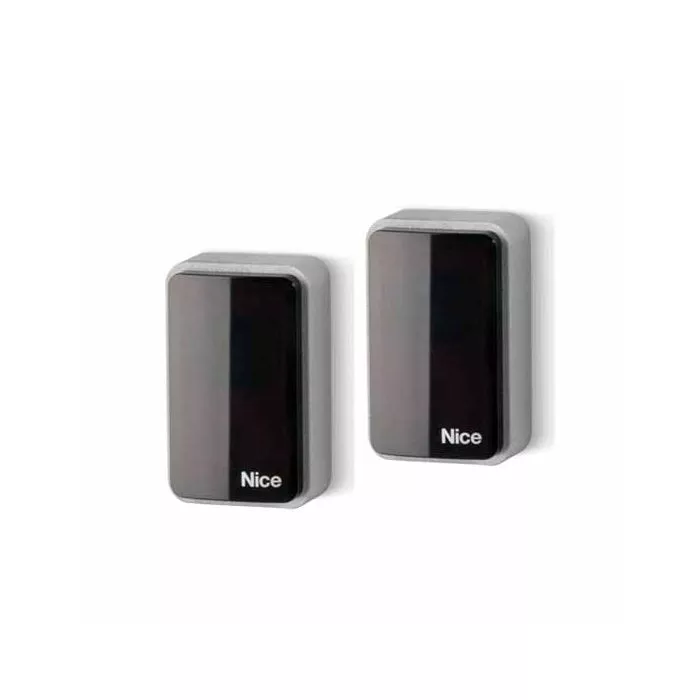

Pair of outdoor photocells fixed 10° BlueBus EPMB

Name: Pair of outdoor photocells fixed 10° BlueBus EPMB
SKU: EPMB
Price: 49 EUR
Availability: InStock

(1)

In stock

SKU: EPMB

qty: 63

Description

Pair of outdoor photocells fixed for connection via BlueBus Nice Mod. EPMB Safe: D type device according to specification EN12453 which allows to pick-up obstacles on the optical axis between transmitter (TX) and receiver (RX). Using the fototest function it is possible to achieve class 2 safety fault according to specification EN 954-1. Cutting-edge technologies: antiglare circuit which eliminates possible sunlight interference. Practical: 10° angle of reception. The models EPM, EPMO, EPMA and EPMAO provide for 2 range levels. Resistant and vandal-proof: ABS body resistant to weather conditions. Nice BlueBUS technology: all models are available with the BlueBUS system, which allows an easy connection to the control unit of all devices with only two wires, by simply connecting them in parallel and selecting the jumpers for addressing according to the needed function. The system acquires automatically the devices connected to the BlueBus network. Automatic synchronization between multiple photocell pairs in order to avoid other possible interferences between the devices. IB interface: allows the connection of photocells with Nice BlueBUS technology to control units having terminals for traditional contacts.

Data sheet

Technical features

Estimated range (m): up to 15 for maximum TX-RX misalignment ± 5 (the device can signal an obstacle even in adverse weather conditions)
Power supply: the device can only be connected to "BlueBUS" networks from which it receives its power supply and sends output signals
Adjustability photocell: No
Degree of protection (IP): 44
Operating temperature: -20 to +50
Dimensions (mm): 50x29x80 h
Weight (g): 140g
