Metal box for CCTV DVR vertical tamper pulsar AWO528W

Name: Metal box for CCTV DVR vertical tamper pulsar AWO528W
SKU: AWO528W
Price: 91.44 EUR
Availability: InStock

In stock

SKU: AWO528W

qty: 2

Description

The enclosure protects the recorder against unauthorized access or theft. The enclosure is made of steel with a thickness of 1mm. It is equipped with lock and two tamper switches, indicating enclosure opening and detachment from the wall.

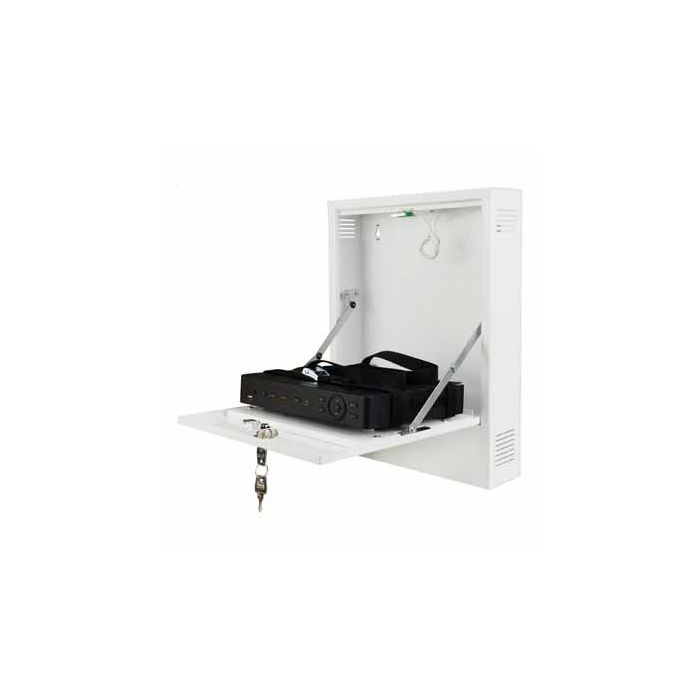

Due to the vertical installation and low depth, it is ideal for places where deeper enclosures or cabinets type Rack19" cannot be installed. After opening the enclosure, the front cover is held in a horizontal position, providing easy access to the buttons on the front panel of DVR.

The enclosure has a special holder with retaining straps that allows for the installation of recorders of the following dimensions: Width up to 260 mm, height: up to 62 mm, depth up to 250mm

Data sheet

Dimensions: width (W) = 320mm, height (H) = 650mm, depth (D) = 80mm
Dimensions of the recorder compartment: width (W) = 260mm, height (H) = 250mm, depth (D) = 62mm
Tamper Tamper protection: 2 x microswitch: opening and detachment from the container wall, 0.5A @ 50V / DC max. NC
Description Material: steel plate DC01 thickness: 1.0 mm, corrosion protection, color: White RAL 9003
Internal use (Waterproof IP20) - Provision for vertical wall mounting.
Locking / unlocking: Lock MR008 (different code)

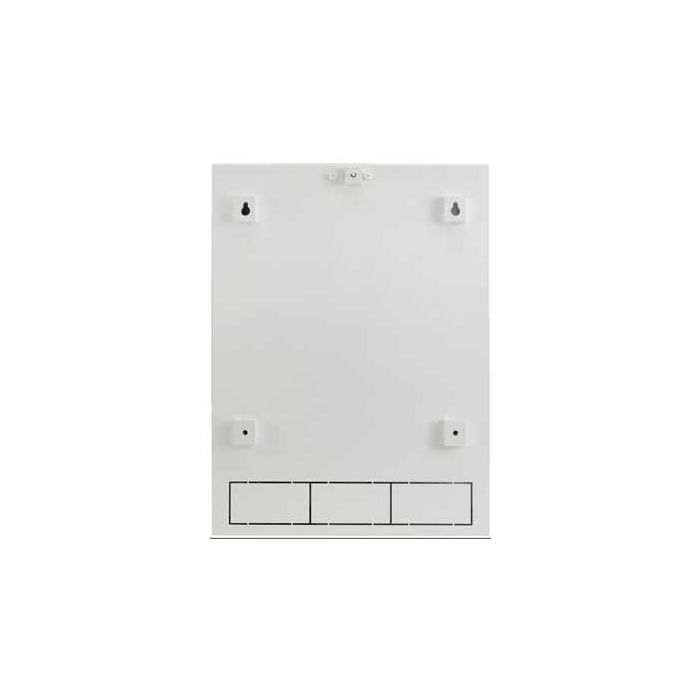

Possibility of opening the rear holes for cables
Operating Environment: class II, -10 ° C to 40 ° C
Net / gross weight: 5,10kg / 5,25kg
Notes: distance from the wall 14mm
Certification: RoHS
