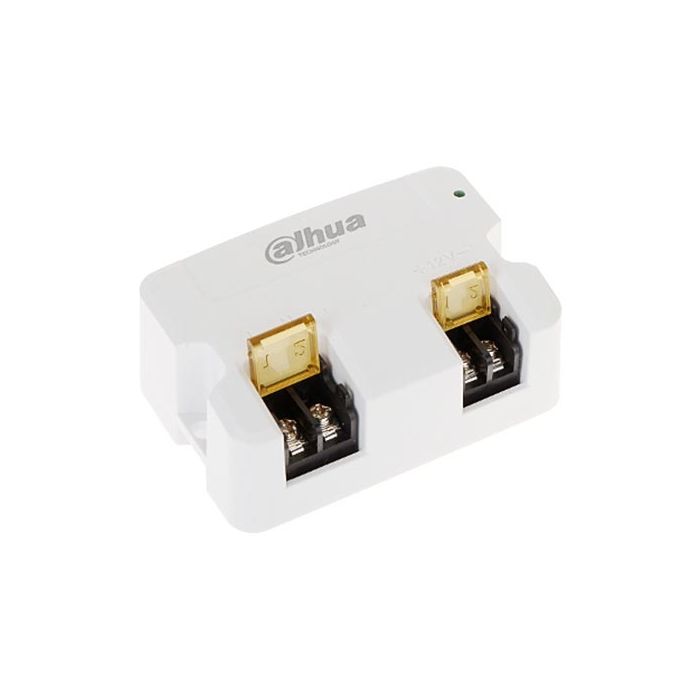

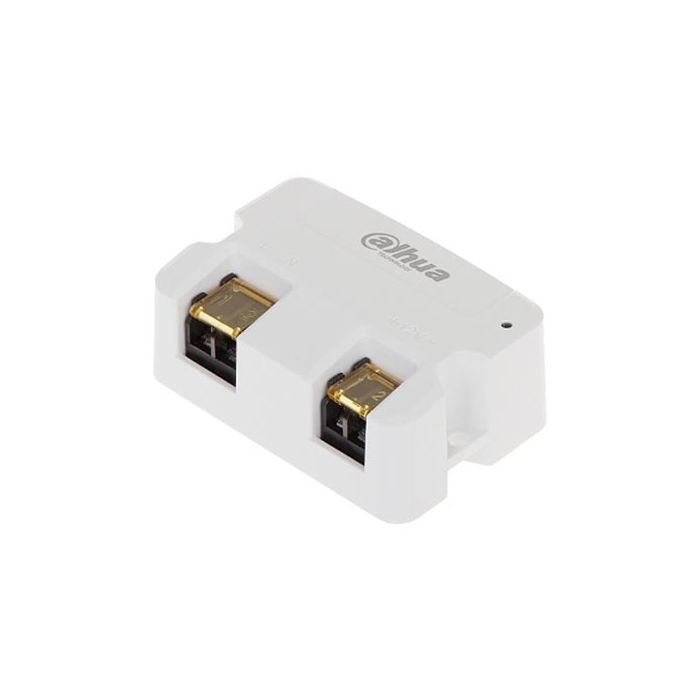

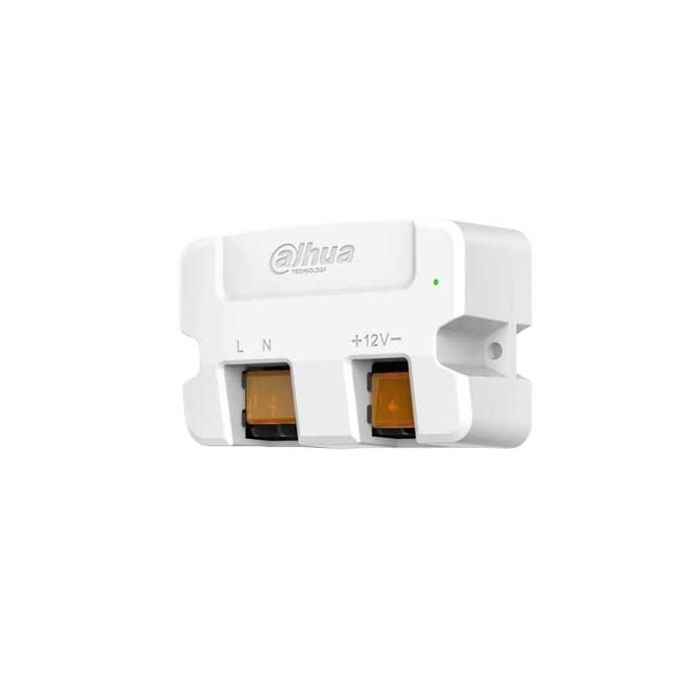

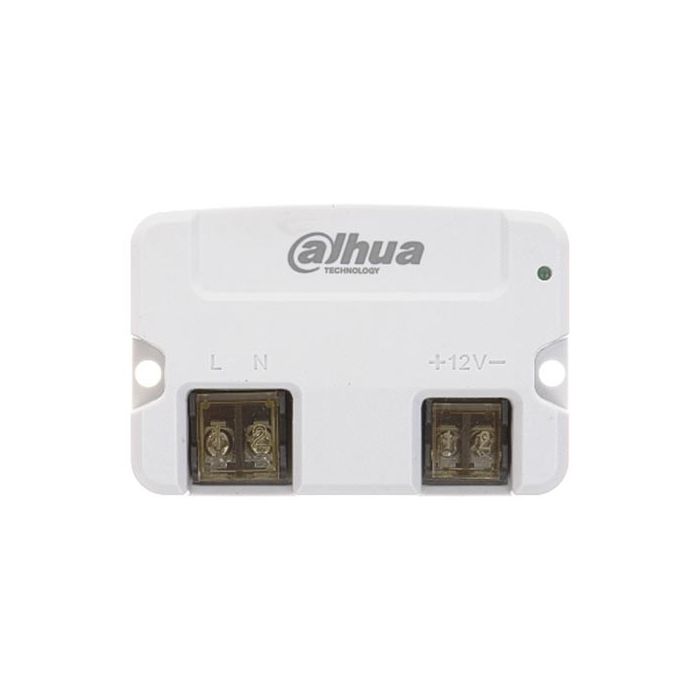

Dahua PFM320D-015 12VDC 1.5A power adapter switching

Name: Dahua PFM320D-015 12VDC 1.5A power adapter switching
SKU: PFM320D-015
Price: 8.42 EUR
Availability: InStock

(3)

In stock

SKU: PFM320D-015

qty: 301

Switching power supply with input 90 ~ 220V with clamp and output stabilized at 12Vdc maximum load 1.5A Dahua PFM320D-015

Features

Easy installation
Support workingwith indicator light
Support -30°C~+70°C wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
Accurate overcurrent, overvoltage protection

Electrical Specification
Rated input	AC100~240V, 50/60Hz, 0.6A
Output voltage	DC12V (+7%, -3%)
Output current	Max. 1.5A (+70℃)
Protection/Environmental
Protection	Surge protection, over temperature protection, over current, voltage load protection
ESD: EN61000-4-2 +/-6kV Contact; +/-8kV Air
Surge: EN61000-4-5 Combination Wave: Common Mode ±4KV(12 ohms) Differential Mode ±2kV(2 ohms)
Working temperature	-30℃~+70℃(-22℉~+158℉)
Working humidity	5%~95% RH
Physical Properties
Weight	95g(0.21lb)
Dimension(LxWxH)	77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“)
Installation	Plane installation, can be installed in junction boxes and wall mount brackets
Color	White
Input plug	2-pin plug(L/N)
Output plug	2-pin plug(+12V-)
Safety Standards
Certification	CE, FCC
