5 entrance jointing enclosure with gel pre-filled IP68/IP69K Raytech FOX BOX

5 entrance jointing enclosure with gel pre-filled IP68/IP69K Raytech FOX BOX

Name: 5 entrance jointing enclosure with gel pre-filled IP68/IP69K Raytech FOX BOX
SKU: FOXBOX
Price: 27.68 EUR
Availability: OutOfStock

Out of stock

SKU: FOXBOX

Description

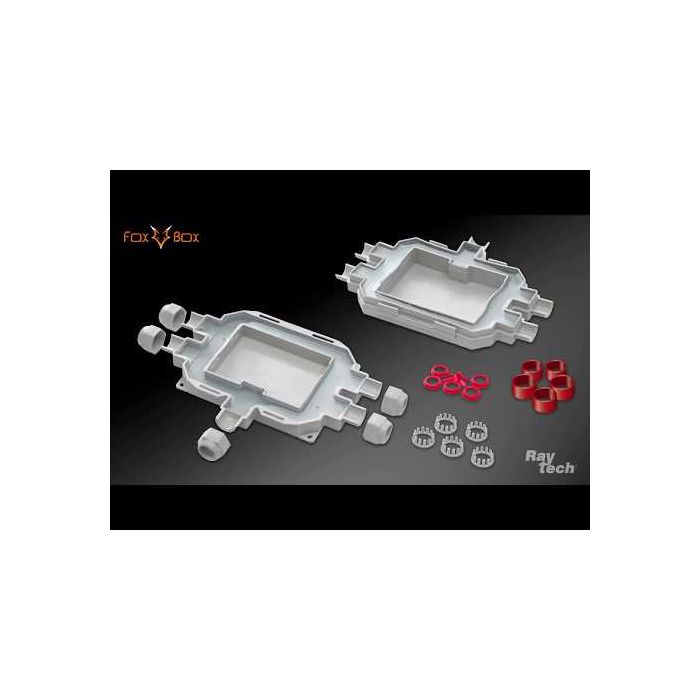

5 entrance jointing enclosure with gel filled perimeter chamber providing lighter weight with maximum capacity. Kit includes accessories to maximise versatility allowing the use of cables from 6 to 18 mm in diameter or with 16, 20 and 32 mm diameter cable conduits. The internal, gel-free compartment allows for dry connections or any future alterations or disconnections. The gel, contained in the perimeter chamber also surrounds, insulates and seals any armour continuity connections or cable shields.

Specifications

Functional, elegant design.
Ideal for exposed and safety systems and for video camera installation.
Ready for use.
Click and hook closure, does not require screws.
Ready and installable in all environmental conditions.
Also suitable for wet or flooded environments.
No shelf life.
Always re-enterable.
Wall or external ceiling fixing system.
Halogen free & UV resistant.

Data sheet

Product - Art.: FOX BOX
Package: Box - Quantity 1pcs
N°. of entrances: 5
Ø entrances with cable glands - min. (mm): 6
Ø entrances with cable glands - max. (mm): 18
Ø Tubes (mm): 16 / 20 / 32
Dimensions: 210 x 155 x 45 mm
Colour: grey.
Electrical performance: CEI EN 50393 as applicable
Gel: UL 94-HB
Halogen free: according to CEI EN 50267 2-2
Self-extinguishing and resistant to abnormal heat and fire: Glow wire test a +960°C according to EN 60695-2-11
Operating Temperature: 90°
Gel operating temperature: -60°C / +200°C
Degree of protection: IP68 (IMQ Officially Tested) - IP69K (Officially Tested)
